DarkRoom, shown

A tour of what the application does, one picture per thing. Every image on this page was captured from the desktop build driving itself — nothing is a mock-up, and nothing has been retouched outside DarkRoom. Where a feature is better seen moving, it moves.

The requirements behind each feature are in requirements.md; the reasoning is in the design documents linked from each section. This page is only about what you see.

The photographs are the author's. None show a person.

Opening a library

DarkRoom opens on a library: a folder on this machine, a folder a sync client keeps, or a Nextcloud account. A folder needs no password and uploads nothing.

Once a folder is named, it is the library — you are not asked for it again, and Open library opens it whole. Subfolder… narrows the scan to part of it. The formats ticked are what the scan looks for; RAW is on and JPEG off by default, because a RAW editor's sensible default is the file the camera wrote first.

The library

Photographs are ordered by capture time, with a month heading where each begins. The strip on the left is the timeline — drag it to jump to a year. The bar above the grid filters by rating, flag, colour label and where the file is (on this device, or only on the server).

Rating and flagging

Hover a cell and the stars appear; click one. The filter chips above the grid count what each rating holds, and clicking 3+ shows only those. From the keyboard, 0 to 5 set the stars on the photograph under the pointer or on the selection; P picks, X rejects and U takes the flag off, and Flag on the selection bar does the same with the pointer. In develop the same keys judge the open photograph and stay on it, and the top bar carries its stars and Pick and Reject; the roll marks each frame's flag and stars.

Colour labels work as Lightroom's do: 6 red, 7 yellow, 8 green, 9 blue, on the photograph under the pointer or on the selection, and the same key again takes the label off. Label on the selection bar offers all five, purple included, and None. Each label is drawn with its initial on it, so it reads without telling the colours apart, and the filter bar has a chip for each. In develop, the top bar names the open photograph's label and sets it, and the same keys work there.

Getting about

Drag the timeline to scrub through years; Ctrl and the wheel resize the thumbnails. On a desktop a scrollbar beside the grid says how far through the library the view is — drag its thumb, or click the track to move a page — and the sidebar, the develop column and Settings have one too whenever they run past the window. On a tablet they scroll by flick alone.

Help in the header, or F1, opens the controls and shortcuts: every key and gesture, screen by screen, with See it beside those this page shows, and Manual to open this page. In develop it is the ? beside Settings.

Selecting several

Select in the header — or Ctrl-click — starts a selection. Shift-click picks a range. The bar at the foot of the grid is everything a selection can be done to: collections, keywords, presets, export, and merging to a panorama.

Keywords on that bar opens a sheet; type a word and press return, and it is on every photograph selected. The list below the field is every keyword the library has, ticked where the selection carries it.

Collections

+ at the head of the sidebar makes one. Drag a photograph — or the whole selection — onto its row to file it there; click the row to see it. A photograph can be in several, and the badge on its cell counts them.

Collections nest. Drag one onto another to put it inside; + with a collection selected — or New collection inside from its menu — makes a child. A parent shows everything its children hold, and its count says so. Right-click a row (hold it, on a tablet) for the menu: rename, nest, move back to the top level, keep it offline, delete.

Bursts

Frames taken a moment apart that look alike fold into one cell, with a badge counting them. Click the badge — tap it, on a tablet — to open the burst in the grid, and again to fold it back. A folded burst shows its earliest frame; to have it show another, open it and click the ring on the frame you want.

With faces indexed, narrowing the grid to a person puts Eyes open beside their name on the filter bar, which leaves out the frames where they blinked.

Duplicate originals

A library put together by hand often holds the same RAW more than once — a dated folder, a bck folder beside it, a renamed copy another program exported. When the catalog finds files with the same camera, capture time and size in more than one place, Duplicate originals appears under the trash in the sidebar with how many there are; Settings offers the same page beside the other whole-library passes.

The page lists each group with its picture and its paths. One copy is marked Stays: the one outside a folder named like a backup (bck, backup, copy, old…), then the one still named the way the camera named it (_MG_4623, IMG_0001, DSC_0042), then the one catalogued first. Tap another path to keep that copy instead, and untick Include to leave a group alone.

Nothing moves until Check has read the first and last megabyte of every copy and each copy's sidecar. A group whose files differ, or whose copies carry two different edits, is marked skipped and says why — two edits of one frame are kept for virtual copies. What the check reads is kept, so a second visit costs nothing. The line under each group says what the copy that stays will gain: the highest rating, every keyword and collection, a flag or label the copies agree on, faces and the names on them, and the edit if only a copy had one. Where the copies disagree on a flag or a label, the one that stays keeps its own and the line says so.

Move N copies to trash does it, one group at a time: each group is merged and its spare copies moved together, or not at all. The copies go to the trash, not away — select them in the trash view and Restore puts them back where they were.

Developing a photograph

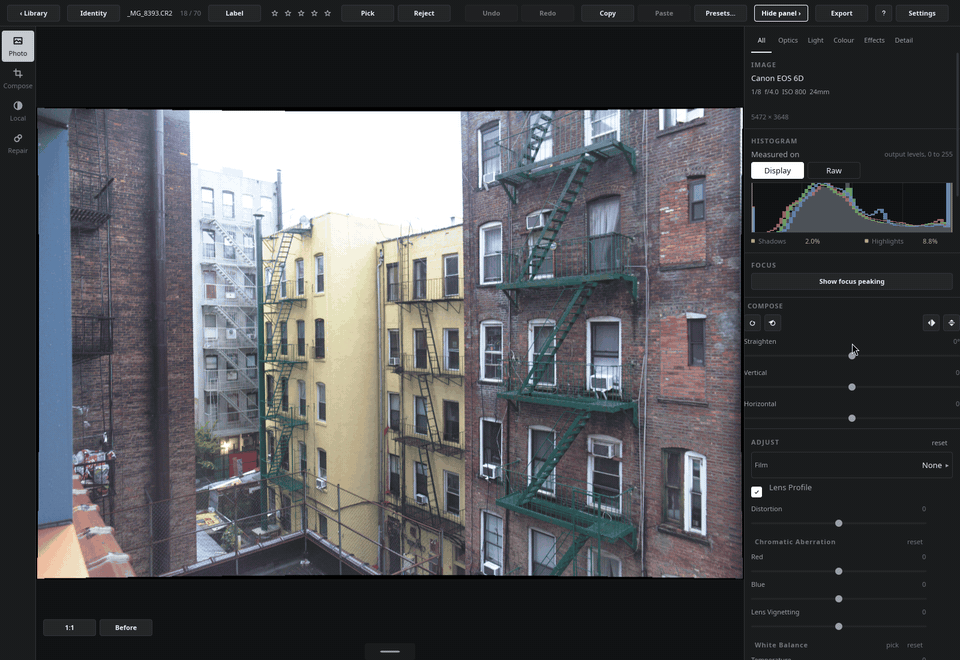

Click a thumbnail to open it. The column on the right is every adjustment; the strip at its head narrows it to one group.

Light

Exposure, contrast, highlights, shadows, blacks, whites and a tone curve. Hold Before to see the photograph as it was.

Looking closer

Double-click for 1:1; drag to move about; double-click again to fit. The wheel zooms to any amount in between. Past 1:1 the file's own pixels are drawn as hard-edged blocks rather than smoothed, so what you see is what the sensor recorded.

Moving between photographs

The roll along the foot of the canvas holds the photographs the grid was showing; click one to open it. The right arrow, D or space opens the next, and the left arrow or A the one before; held down, they go on past the stretch the roll has loaded, through everything the grid would show. The edit on screen is saved on the way, so stepping along a shoot loses nothing.

White balance from the photograph

Press pick in the White Balance group, then click something neutral — a white wall, a grey card, the air conditioner here. The picker sets the sliders from the photograph, not from where they were: below, the frame is dragged cold first and one click puts it right. A blown highlight is refused, since a clipped pixel has no colour left to balance.

Composing

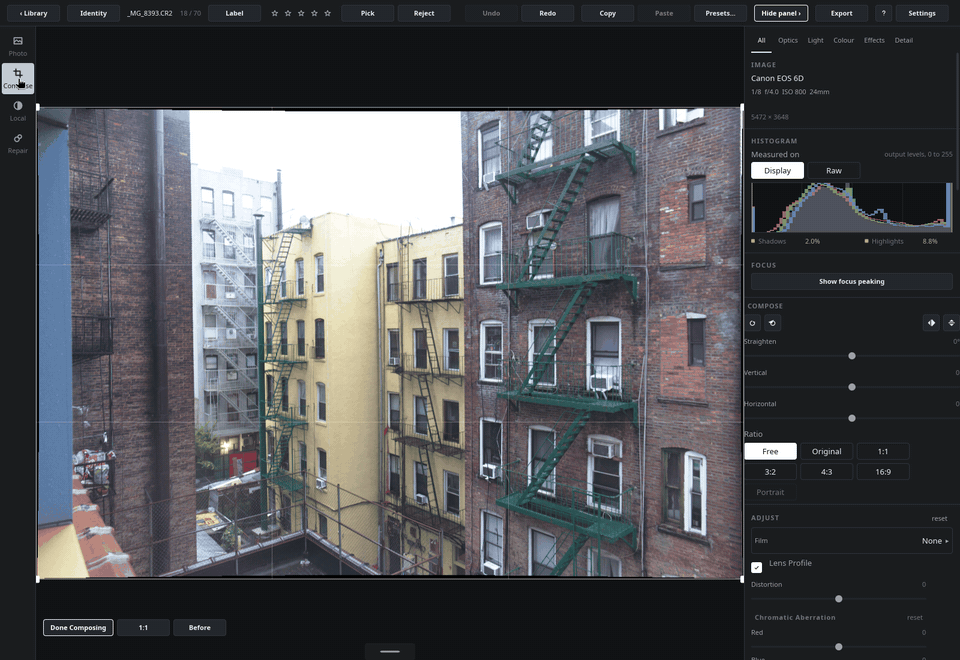

Crop by dragging the frame's corners, straighten with the slider, lock a ratio from the chips. Done composing returns to the photograph.

Vertical and Horizontal, under Straighten, correct the lines that converge when the camera is tilted up at a building; the crop refits to what is left.

A crop that leaves a mask wholly outside the frame says so, and offers to take the crop back or keep it.

Local adjustments

Local in the rail turns the column into a mask stack. Find subjects runs a segmentation model over the photograph; what it recognises appears as a list of categories with how much of the frame each covers. Click one and it is a mask — then every slider below edits only that region.

A mask is a stack of parts. Paint into it, subtract a gradient from it, grow or shrink its edge, choose how it falls off. Show masks as draws the mask tinted, as alpha, or as an outline; the eye on its row switches it off.

Linear and radial gradients, a tone range and a colour range are the other ways to make one; each can be combined with any other. ∩ Intersect keeps only where the new part and the mask agree: below, a gradient over the lower half, then two strokes that survive only where the gradient is.

Repair

Repair in the rail: click a mark and it is covered from a source DarkRoom chooses beside it. Drag either circle to move it; the size, feather and opacity are in the panel. Heal blends; clone copies.

Film

The Film chooser at the head of Adjust applies a spectral simulation of a named stock; below it, the print exposure and push controls a film has and a sensor does not. The list opens over the column and scrolls on its own — by wheel, drag or flick, or with Up, Down and Enter — down to the black-and-white stocks at its end.

History, snapshots, presets

Every change is a step; Undo and the History panel walk them. Snapshot keeps the current state under a name. Presets… saves the settings to apply elsewhere, and imports .xmp from other applications.

The sheet lists your own presets first, then the ones DarkRoom ships — Essentials, and colour, cinema and black-and-white film, one measured stock each. A shipped preset is a look: it changes what it names and leaves the photograph's own corrections alone, as an imported Lightroom preset does. Saving under a shipped preset's name makes your version the one that name applies, marked changed; Revert brings the shipped one back, and renaming yours makes it one of your own.

Copying settings

Copy in the top bar, or Ctrl+C, takes this photograph's settings; Paste, or Ctrl+V, puts them on another, and says what it would paste — how many adjustments, and whether the crop comes too. In the grid, Paste to N on the selection bar pastes onto every photograph selected. Which kinds of edit a copy carries is chosen in Presets…, or with Ctrl+Shift+C: a look carried across a shoot usually leaves each frame's own crop alone.

Merging a panorama

Select the frames, then Merge to panorama from the selection bar. The frames are read, aligned, and drawn on the suggested projection with each one outlined where it landed — twelve hand-held portrait frames across an alpine valley, here. Change the projection (a 150° sweep on a flat perspective is what the middle of the film shows, and why cylindrical is suggested), ask for the border to be filled rather than cropped, then Merge. The composite is written beside its sources as a DNG and appears in the grid with the merge as the first step in its history.

Export

Export in the develop header, or Export N from a selection. Format, size, colour space, sharpening, naming and where the file goes are in Settings, and apply to every export until changed. An export with no folder set is refused, and the header says so.

Settings

Background activity with progress, thumbnail and face indexing, how many duplicate originals the library holds and the way to their review, storage on this device, display and colour, export defaults, what is written to XMP sidecars, the manual, and a diagnostics bundle for a bug report.

People

Face detection and identity run over the library and group faces by person; the Identity page is where suggestions are confirmed, rejected and split, and People on the filter bar narrows the grid to someone. Not pictured here, for the obvious reason — faces.md has the design.

Where things are written down

Feature	Design
Local masks and segmentation	segmentation.md, mask-editing.md
Repair	spot-removal.md
Panorama	panorama.md
Faces and identity	faces.md
Gestures, generated from the code	gestures.md
Navigation and layout	ui-navigation.md
Sync and storage	storage.md

How this page is made

tools/manual/ drives the desktop build on a private X server and records each scene; record.sh <library> re-makes every picture here. Run it after a change to the interface and commit what changed. The pictures are in LFS.

The application carries this page. cargo run -p traceability -- manual renders it to index.html beside it, which the packages install with the pictures and the app opens from Help, from Settings, and from the "See it" link beside a gesture on the help sheet. CI fails when the two differ.

Making it the first time turned up nine faults, each fixed in its own commit before the pictures were taken: the folder picker could not choose the top level, month headings overprinted each other, a category mask widened the column off the window, the mask tint outlived its mode, the first sync uploaded an empty thumbnail shard, a merge that ran out of GPU memory left the page on Stop for ever, the export settings promised to ask for a folder and did not, the keyword sheet sent its keys to the grid, and an empty trash told you to check your library folder.
